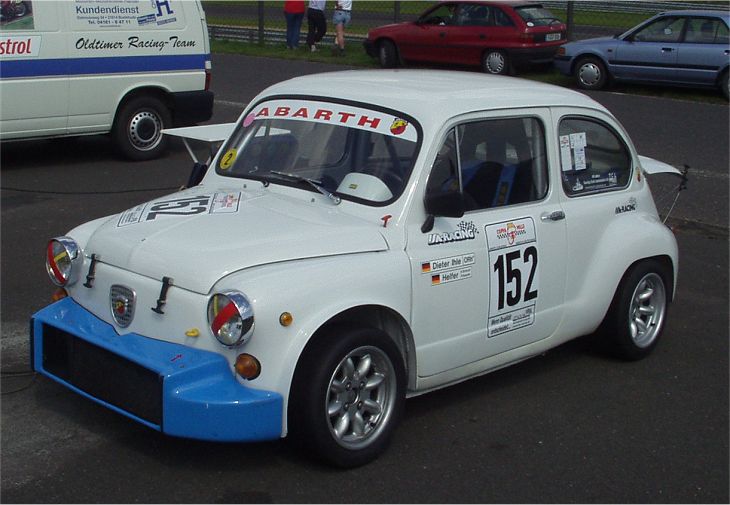

Abarth Fiat 1000 TC

Abarth Fiat 1000 TC
ManufacturerAbarth
CountryItaly
Production Started1964
Production Stopped1964
Body StyleTudor

The Abarth Fiat 1000 TC, or “Turismo Competizione,” is a legendary model that elevated the Fiat 600 platform into a high-performance racing machine. Carlo Abarth’s vision was to take Fiat’s small and unassuming cars and transform them into powerful, agile racers, and the 1000 TC is a prime example of this philosophy. This model featured a re-engineered engine that pushed its displacement to 1,000cc, a significant upgrade from the original. With this increase in engine size, the 1000 TC could achieve impressive speeds for its time, making it highly competitive on the European racing circuit.

Abarth’s modifications to the 1000 TC extended well beyond its engine. The car was equipped with an upgraded suspension system to handle the demands of high-speed racing, larger brakes to improve stopping power, and a rear-engine cooling solution that saw the hood propped open for better air circulation. The bodywork was also altered to incorporate wider wheel arches, allowing for a broader stance and enhanced stability on the track. These changes, combined with signature Abarth stripes and badging, gave the 1000 TC a distinctly aggressive look that matched its racing capabilities.

The 1000 TC quickly became a favorite among privateer racers and achieved numerous victories in its class, especially in endurance and hill-climb events. Its success helped solidify Abarth’s reputation as a master tuner, capable of transforming everyday vehicles into race-ready contenders. Today, the Abarth Fiat 1000 TC is a coveted classic, cherished by collectors for its unique place in racing history and its embodiment of Abarth’s commitment to performance and innovation in small cars.

Vehicle

Production Numbers0
Number of Doors2
Number of Seats1

Engine

Engine ManufacturerFiat
EngineInline 4
Engine LocationRear
Engine Displacement982 cc
ValvetrainOHV
Valves per Cylinder2
Bore65 mm
Stroke74 mm
Cooling SystemWater
Charging System6V
Fuel TypePetrol
Fuel SystemCarburator
AspirationNormal

Performance

Top Speed118 mph
Power63 / 85 / 84 @ 7600 rpm

Steering, Transmission & Suspension

DrivetrainRear
TransmissionM5
SteeringRack and Pinion
Front SuspensionLeaf Spring
Rear SuspensionLeaf Spring
Front BrakesMechanical Braking
Rear BrakesMechanical Braking
ChassisBody-on-Frame

Dimensions

Weight583 kg
Length3520 mm
Width1390 mm
Height1400 mm
Wheelbase2000 mm
