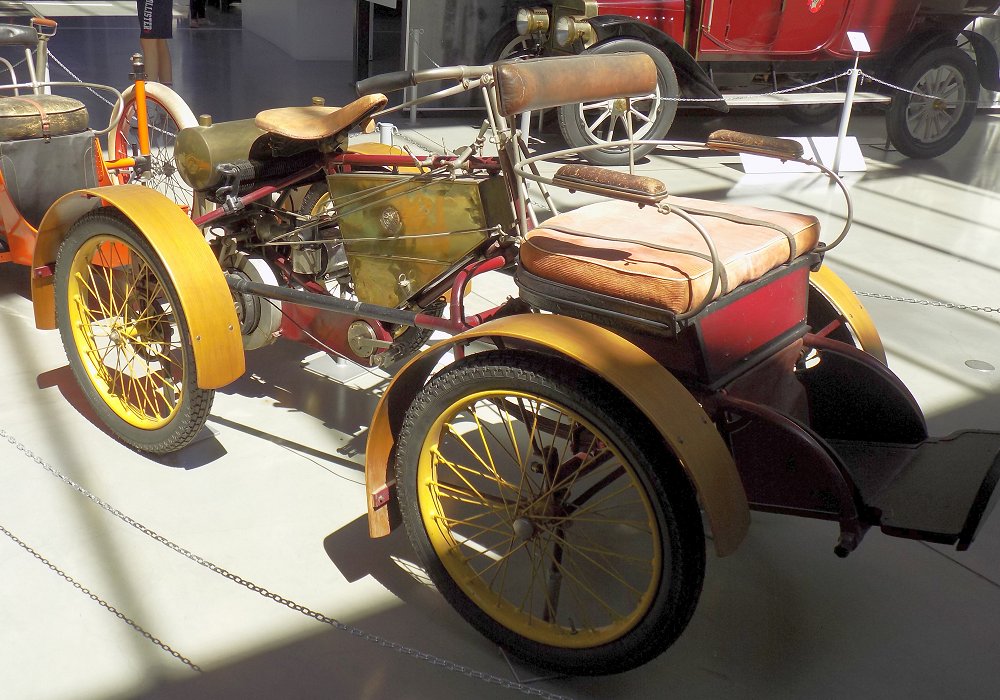

The De Dion-Bouton Quadricycle was an important early development in the evolution of the automobile, bridging the gap between motorized tricycles and more stable, four-wheeled cars. Built in the late 1890s, the quadricycle retained much of the simplicity of earlier De Dion-Bouton tricycles but offered improved balance, comfort, and usability due to its four-wheel layout.
The vehicle used a tubular steel frame, often with a light wooden body mounted on top, and accommodated two passengers seated side by side. Its layout resembled a horse-drawn carriage but with a small petrol engine at the rear or beneath the seat, depending on the model. Like its three-wheeled predecessor, it employed a De Dion single-cylinder engine, typically around 1.75 to 2.75 horsepower, depending on the version. This engine was air-cooled, had a bore and stroke design suited to higher revolutions than many other engines of the period, and was praised for its smooth operation and relatively reliable ignition.
The De Dion-Bouton quadricycle used a chain or belt drive system to transmit power to the rear axle. Steering was managed via a tiller, which controlled the front wheels in a rudimentary but effective manner. The rear axle sometimes employed De Dion’s own innovative design, which separated the drive shaft from the suspension to improve ride quality and reduce unsprung weight—an early example of forward-thinking engineering.
Compared to the tricycle, the quadricycle offered greater stability, which made it safer and more appealing to those new to motorized travel. It could reach speeds of approximately 30 to 40 km/h (20 to 25 mph), which was quite respectable for a vehicle of its time.
The quadricycle was used not only for personal transportation but also in early competition and endurance events. It helped to introduce the motor car to a wider audience and established De Dion-Bouton as a leading force in automotive innovation. The company’s engines were so well regarded that many other manufacturers licensed or copied them during this era.
Today, the De Dion-Bouton Quadricycle is considered a classic example of pioneering automotive design. Examples are rare and often preserved in museums or private collections. Their elegance, simplicity, and engineering ingenuity make them an enduring symbol of the early motoring age.
