Description

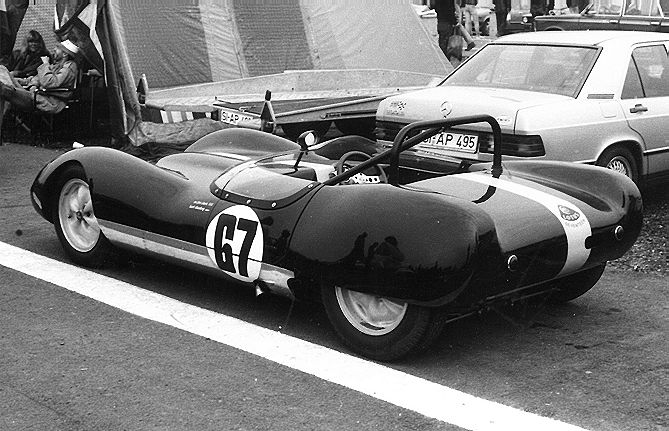

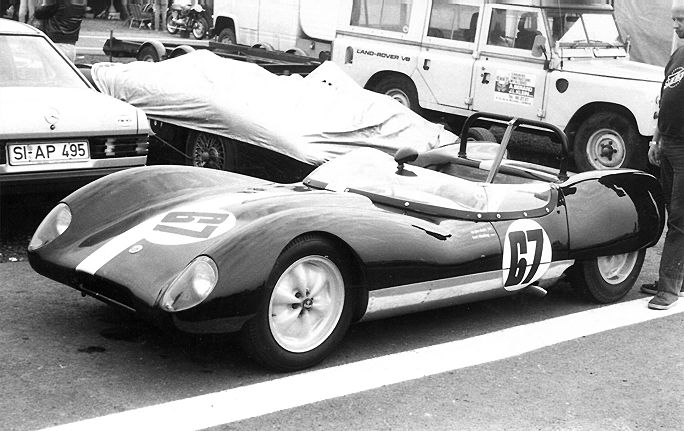

The Lotus Mark 17, introduced in 1959, was the final evolution of the front-engined sports-racing cars developed by Colin Chapman before Lotus fully embraced mid-engined design. Intended as a replacement for the Mk 15, the Mk 17 was smaller, lighter, and more aerodynamically advanced — the ultimate expression of Chapman’s philosophy of performance through lightness and simplicity. It was conceived as a pure competition machine for the 1,100 cc sports-car class, offering privateer racers a highly efficient and technically sophisticated alternative to larger, heavier rivals from Cooper, Lola, and Porsche.
The Mk 17 was built around a newly designed spaceframe chassis that represented the most compact and refined structure Lotus had yet produced. The tubular steel frame was exceptionally light, weighing only around 25 kilograms, yet its triangulated layout provided outstanding torsional stiffness. Chapman and his engineering team focused on lowering both the car’s weight and frontal area to minimise aerodynamic drag and improve cornering stability. The result was a chassis that sat even lower than that of the Mk 15, positioning the driver almost reclined within the car to achieve a sleek silhouette.
Power was provided by the proven Coventry Climax FWA engine, a 1,098 cc all-aluminium four-cylinder unit producing around 75 horsepower in standard form and up to 90 horsepower in racing tune. Coupled with a close-ratio four-speed gearbox and a total weight of just 390 kilograms, the Mk 17 offered an exceptional power-to-weight ratio. Performance was impressive for its class, with a top speed of approximately 125 mph and vivid acceleration that allowed it to compete effectively against much larger-engined cars.
The suspension layout followed Lotus tradition: independent double wishbones with coil springs and dampers at the front, and a live rear axle located by trailing arms and a Panhard rod at the rear. Drum brakes were fitted all round — sufficient for a car of such lightness — and steering was unassisted but extremely precise. The combination of low mass, perfect weight distribution, and Chapman’s expert suspension geometry gave the Mk 17 superb handling characteristics. It could be driven right at the limit with remarkable predictability and balance, rewarding smooth, measured inputs and punishing over-driving.
Frank Costin once again contributed to the aerodynamic design, creating one of the most advanced shapes yet seen on a small-capacity sports-racer. The aluminium body, hand-formed by Williams & Pritchard, was remarkably low and narrow, with faired-in headlamps, a long tapering tail, and minimal frontal area. The sleek form reduced drag to a level unprecedented in its class, while the carefully shaped underbody helped maintain stability at speed. The cockpit was extremely compact — little more than a small windscreen, a thinly padded seat, and the essential instruments mounted on a simple panel. Every detail was engineered for efficiency, not comfort.
The Lotus Mk 17 made its competition debut in 1959 and was campaigned primarily in British and European sports-car races. However, its extreme lightness and low profile proved to be a mixed blessing. While the car was extremely fast on straights and nimble through corners, it suffered from chassis flex and brake fade under endurance conditions. The first few cars also experienced handling instability over rough surfaces due to the ultra-stiff suspension setup. Chapman and his team quickly implemented modifications to address these issues, and later examples proved more stable and reliable.
Despite these early challenges, the Mk 17 demonstrated immense potential. It achieved numerous class wins and podium finishes in national and club racing, often out-handling far more powerful opposition. In privateer hands, it became a favourite for hill-climbs and short-circuit racing, where its lightness and agility could be fully exploited. The experience gained from developing and racing the Mk 17 directly influenced the design of the Lotus Type 19 and the later mid-engined Lotus Type 23, which would dominate small-capacity sports-car racing in the early 1960s.
Visually, the Mk 17 was among the most beautiful of all the front-engined Lotus models. Its graceful, low-slung form captured the essence of Chapman and Costin’s shared philosophy — that speed was achieved not through brute force, but through elegance, efficiency, and minimalism. The long nose, low cockpit, and smooth tail gave it a timeless purity of line, and it remains one of the finest examples of Lotus’s early aerodynamic work.
Production numbers were extremely small — likely fewer than ten cars were built — making the Mk 17 one of the rarest Lotus competition models. Surviving examples are prized by collectors and historic racers for their lightness, delicacy, and historical significance as the last of the great front-engined Lotus sports cars.
Today, the Lotus Mark 17 is remembered as the final chapter in the evolutionary line that began with the Mk 8. It distilled all of Chapman’s early innovations — the spaceframe chassis, advanced aerodynamics, and obsession with weight reduction — into one exquisitely focused racing machine. Though soon eclipsed by Lotus’s revolutionary mid-engined designs, the Mk 17 remains a landmark in the company’s history: the ultimate refinement of the lightweight, front-engined ideal and a bridge between the pioneering post-war Lotus racers and the dominant mid-engined cars that would follow.
