Description
The Lotus Seven S2 Racing was the ultimate track-bred evolution of Colin Chapman’s minimalist sports car—an elemental, featherweight machine built to deliver maximum performance through precision engineering and absolute simplicity. Introduced in the early 1960s and derived from the road-going Series 2, the racing versions of the Lotus Seven became the very embodiment of Chapman’s core philosophy: “Simplify, then add lightness.” Designed for club competition, sprints, and hill climbs, the S2 Racing combined the Seven’s brilliantly balanced chassis with higher-output engines, upgraded suspension, and stripped-down construction to create one of the most effective small competition cars ever built.
At its heart, the Lotus Seven S2 Racing used the same lightweight tubular space frame that underpinned all Series 2 models. This chassis was an evolution of the original S1 design—simplified in layout but carefully engineered to retain rigidity. The use of small-diameter steel tubing and aluminum body panels kept the overall weight around 450 to 480 kilograms, depending on specification. The design achieved near-perfect balance between stiffness and lightness, giving the car an immediacy and responsiveness that few competitors could match. The racing variants took this to the extreme: interiors were completely bare, unnecessary trim was deleted, and lightweight materials were used wherever possible.
The engines fitted to the S2 Racing models varied depending on competition class and customer budget, but all shared a common goal: maximum performance from minimal displacement. The most famous units were the Lotus-tuned Ford engines, particularly the 1,340 cc and 1,498 cc “pre-crossflow” inline-fours. In racing tune with twin Weber carburetors, high-compression pistons, and aggressive camshafts, these engines produced between 90 and 120 horsepower. Some competition cars were fitted with the 1.1-litre Coventry Climax FWA engine—an all-aluminum jewel producing 80 horsepower at high revs but prized for its lightness and racing pedigree.
In certain top-level privateer or works-supported builds, Lotus and specialist tuners went further still, extracting up to 140 horsepower from 1.5-litre Cosworth-modified engines. Given the car’s weight of barely half a ton, this power transformed the Seven into a ferociously quick machine, capable of out-accelerating far more powerful sports cars. On short circuits or tight hill climbs, the Seven S2 Racing could easily humble Jaguars, Ferraris, and Aston Martins, relying not on brute power but on precision, grip, and agility.
The suspension setup remained largely unchanged from the road version but was tuned for competition use. The front end employed unequal-length wishbones and coil springs, while the rear used a live axle with trailing arms and coil springs. Adjustable dampers, stiffer spring rates, and revised geometry gave the racing Seven extraordinary cornering balance. With such little mass, the car responded instantly to driver input, making it ideal for tight, technical courses where larger sports cars struggled. Braking was similarly straightforward yet highly effective—drum brakes all around in the early cars, with front discs fitted to later or modified examples. Because of the car’s lightness, fade and stopping distances were rarely an issue.
The steering was unassisted, quick, and full of feedback. Every vibration, every change in grip, every shift in balance was communicated directly to the driver’s hands. It was this immediacy that made the Seven S2 Racing such a formidable weapon in skilled hands. The car didn’t just handle—it danced. Its ability to rotate precisely around its center made it one of the most responsive racing chassis ever built, perfectly suited to the flowing, narrow circuits of 1960s Britain and Europe.

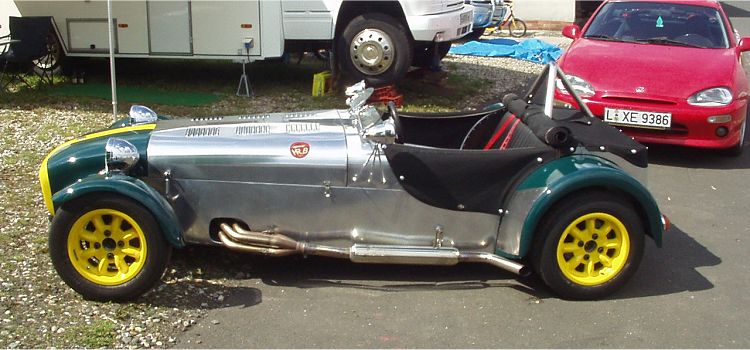

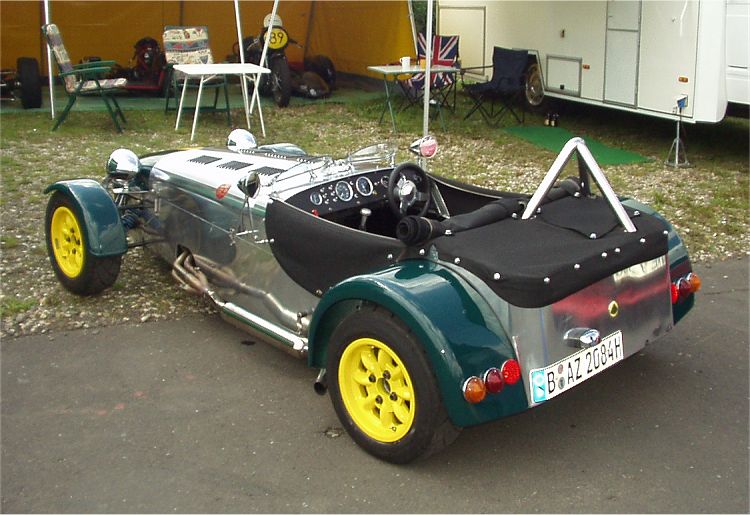

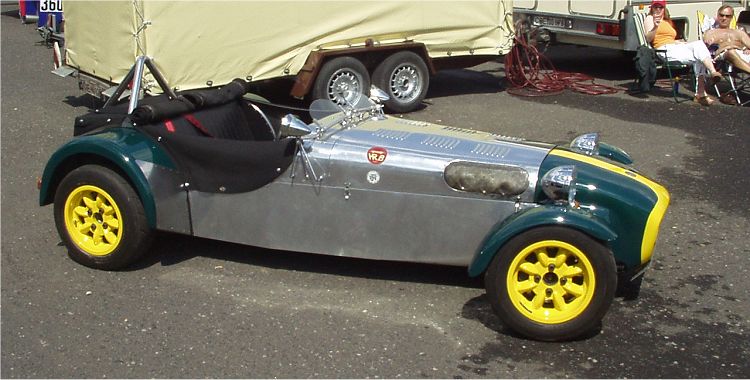

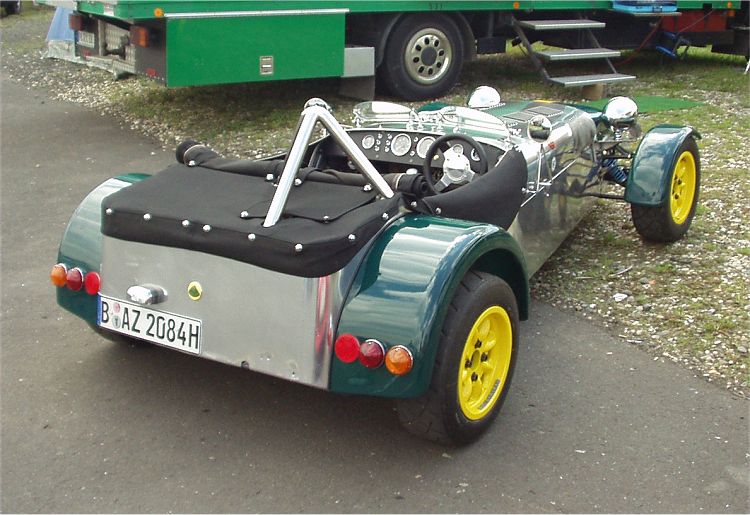

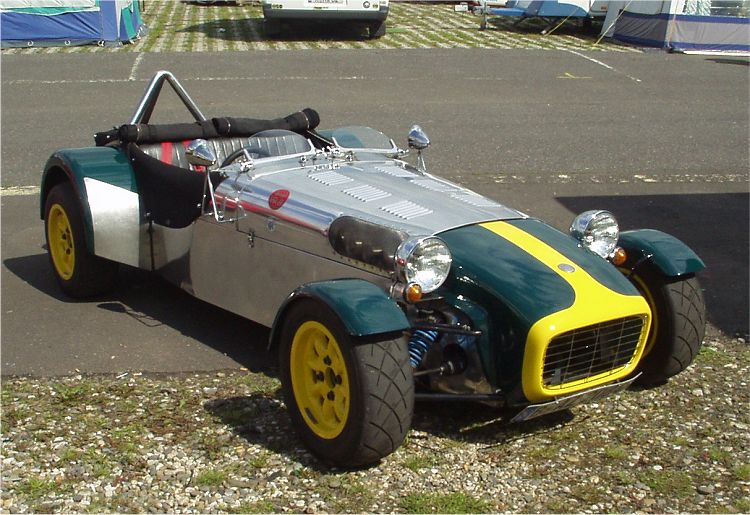

Visually, the S2 Racing retained the familiar minimalist design of the Seven but with purposeful modifications. The aluminum panels were often left unpainted or finished in lightweight racing colors, with exposed rivets and reinforced mounting points. The fiberglass nosecone, with its oval grille, remained distinctive, though many racing cars featured additional air intakes or venting for cooling. Cycle-style front fenders were often replaced by lighter, fixed wings for aerodynamic efficiency, and wide racing tires filled the narrow bodywork. Some examples added small aero screens or roll hoops, depending on the competition’s regulations.

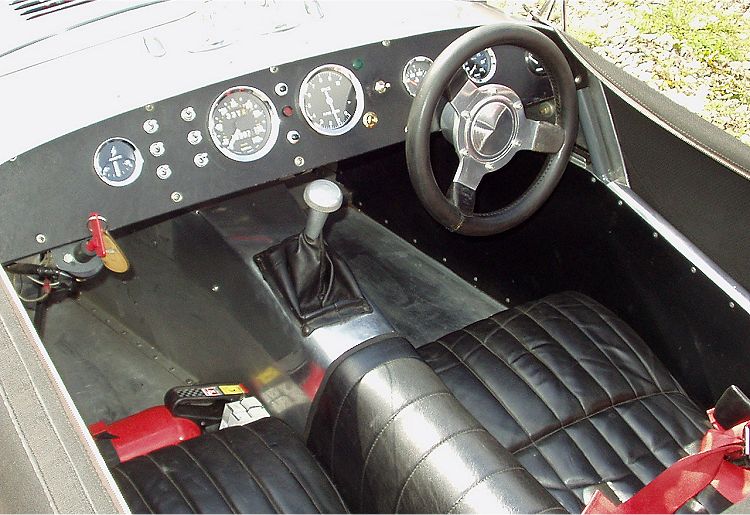

Inside, the cockpit was stripped to its bare essentials. Two lightweight bucket seats, a three-spoke steering wheel, and a simple dashboard carrying only the necessary gauges—tachometer, oil pressure, and temperature—were all that remained. There was no trim, no insulation, and no concession to comfort. The driver sat low, almost between the rear wheels, perfectly positioned for balance and control. The pedals were close-set for heel-and-toe shifting, and the short-throw gear lever allowed lightning-fast changes. Everything about the driving position was designed for function, precision, and feel.
On track, the Lotus Seven S2 Racing was a revelation. Its small size and low weight meant that it could carry astonishing speed through corners, braking late and exiting with impeccable traction. The car’s agility allowed it to change direction instantly, its live rear axle delivering predictable slides that could be controlled with the throttle. Acceleration was vivid, with the tuned engines pulling strongly through the rev range, accompanied by the sharp, metallic bark of open carburetors and the crackle of the exhaust just inches from the driver’s ear. Every drive was an exercise in mechanical harmony—the car responding as if it were an extension of the driver’s body.
The S2 Racing proved devastatingly effective in competition. Throughout the early 1960s, it became a dominant force in club racing, hill climbs, and autocross events across Britain and Europe. It competed successfully in the 750 Motor Club, British Clubman’s Championship, and various international categories where lightweight sports cars were permitted. Drivers loved the car’s honesty—it rewarded skill, punished carelessness, and delivered a sense of connection unmatched by more powerful machines. Its low running costs and mechanical simplicity made it a favorite among privateers, who could tune and maintain it in their own garages.
The success of the S2 Racing laid the foundation for a motorsport legacy that endures to this day. The basic Seven formula—lightweight chassis, front-engine, rear-drive balance, and minimal bodywork—proved so effective that it continued to dominate club-level racing for decades. Even after Lotus sold the design rights to Caterham in 1973, the Seven’s spirit remained unchanged, and racing variants still carry on its legacy around the world.
Today, the Lotus Seven S2 Racing is revered as one of the purest competition cars ever built. Collectors and historic racers value it not only for its performance but for its significance in motorsport history. It represents a golden age of racing—a time when ingenuity, not budget, defined success.
The Lotus Seven S2 Racing was not just a car; it was a philosophy in motion. It proved that true performance comes from lightness, precision, and the intimate connection between driver and machine. Even more than sixty years later, it remains one of the most exhilarating and rewarding racing cars ever created—a timeless expression of Colin Chapman’s genius and the enduring purity of the Lotus ideal.
